Troughing Carrying Idlers
6 Troughing Carrying Idlers Products
Troughing Carrying Idlers

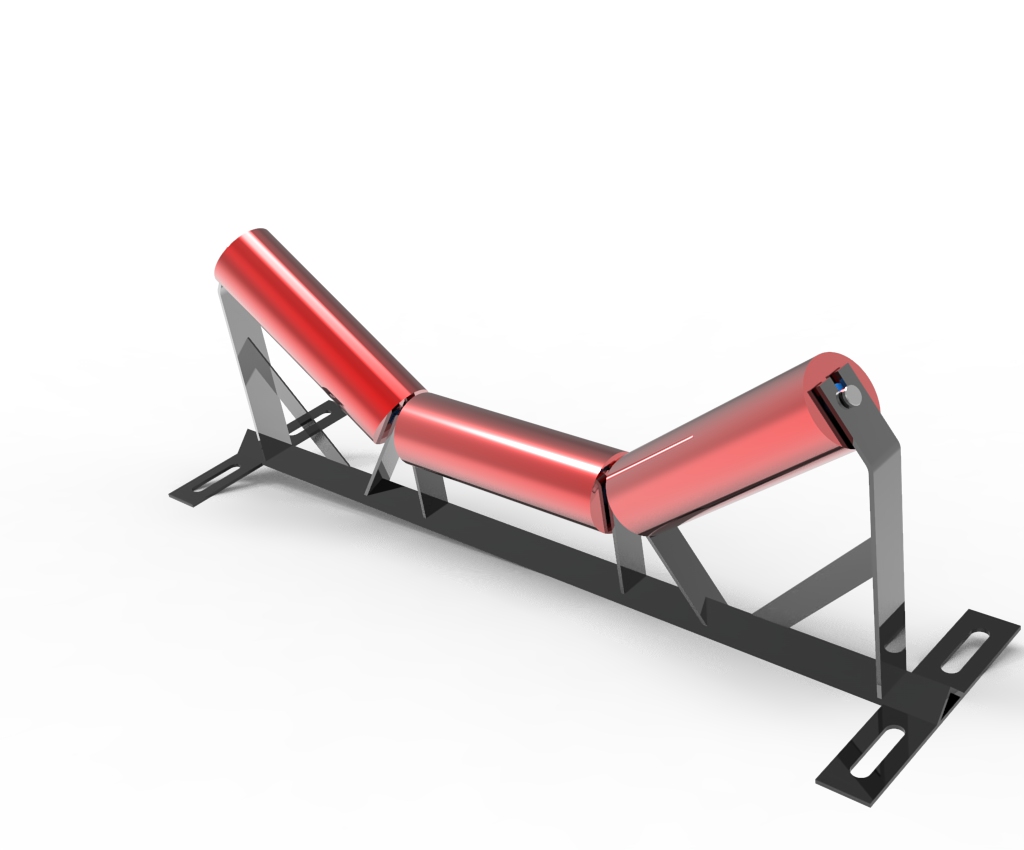

Inline 3-Piece Troughing
Most common carrying idler. Supports belt and material on carrying run. Trough angles 20°, 30°, 35°, 40° standard; 10°, 15°, 45° on request.
Troughing Carrying Idlers

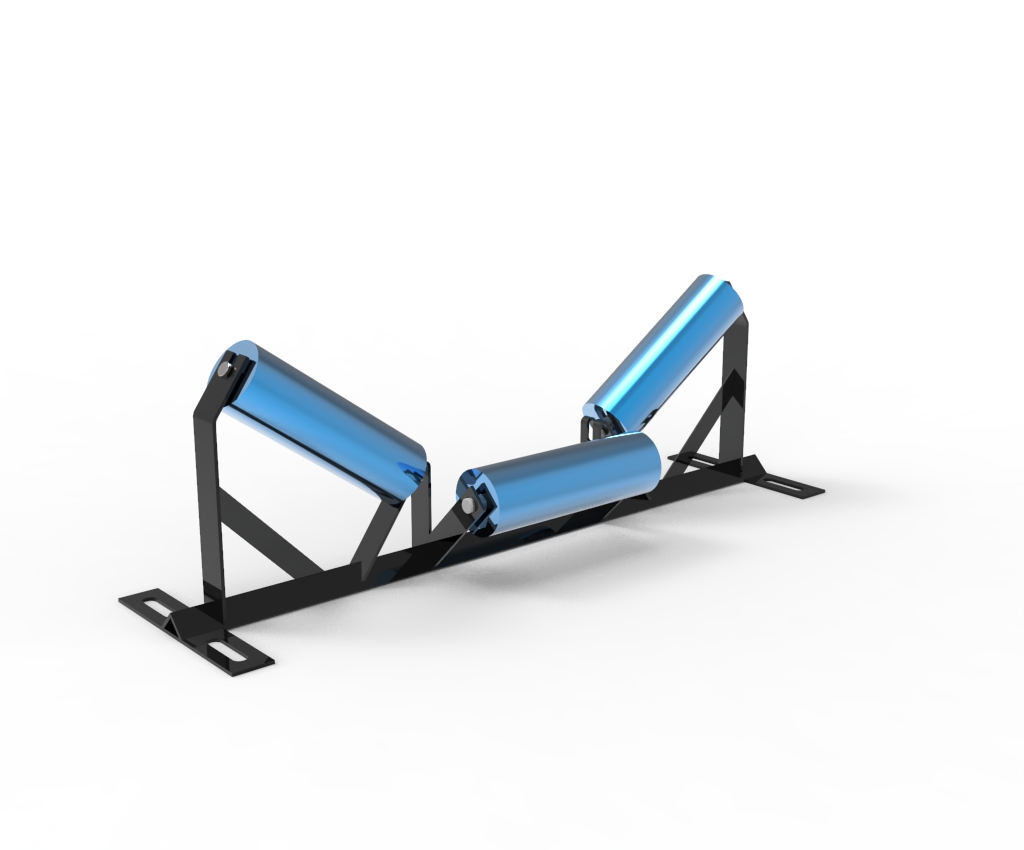

Offset 3-Piece Troughing
Reduced height, smaller gap between rollers. Prevents belt snagging. Ideal for underground mines and thin belt carcasses.
Troughing Carrying Idlers

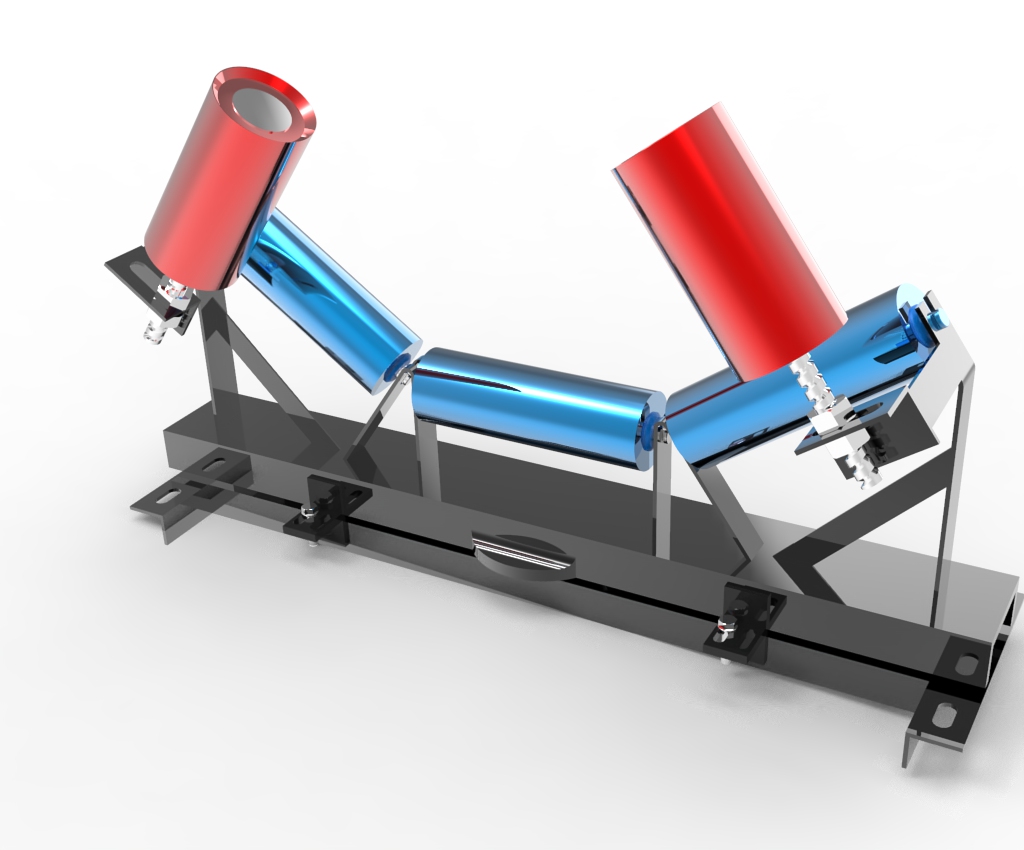

Self-Aligning Troughing
Pivoting frame auto-corrects belt tracking drift on carrying side. Installed at 100–150 ft intervals.
Troughing Carrying Idlers

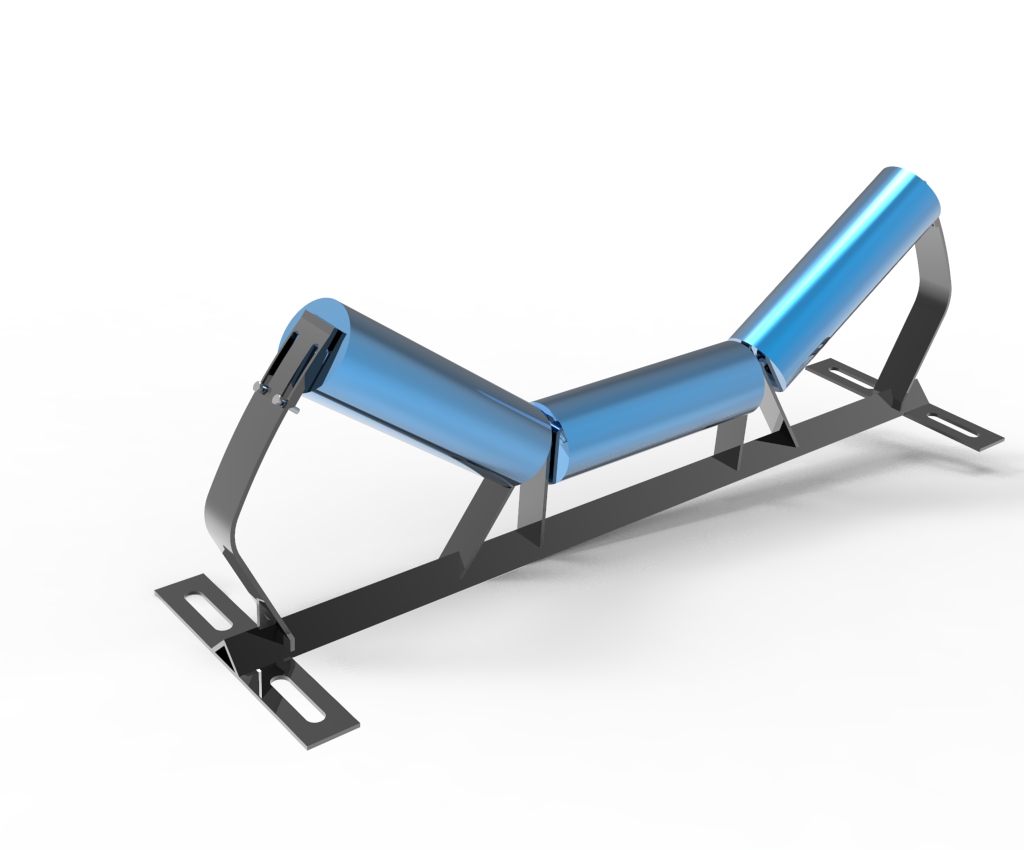

Transition Idler
Adjustable angle for belt transition zone — flat to troughed profile between terminal pulley and troughing run.
Troughing Carrying Idlers

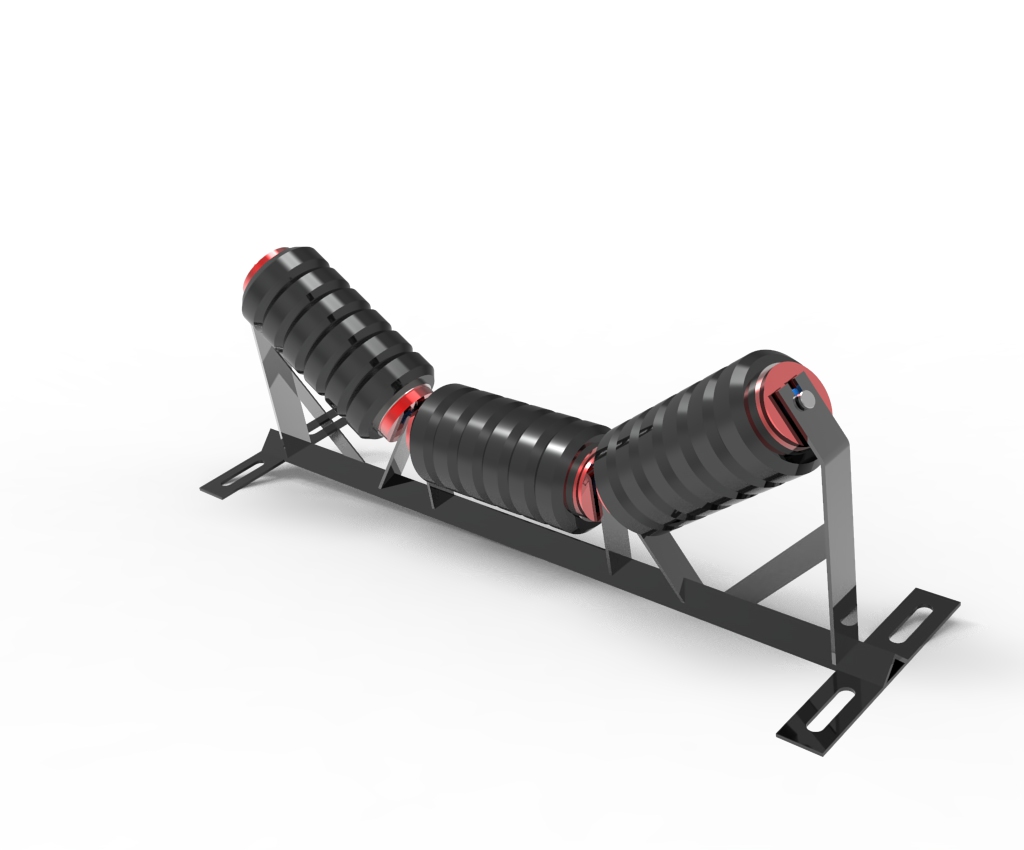

Rubber Disc Impact
Rubber rings absorb shock at loading/transfer points. Shore A hardness 60±5. Discs pressed and locked with retaining ring.
Troughing Carrying Idlers

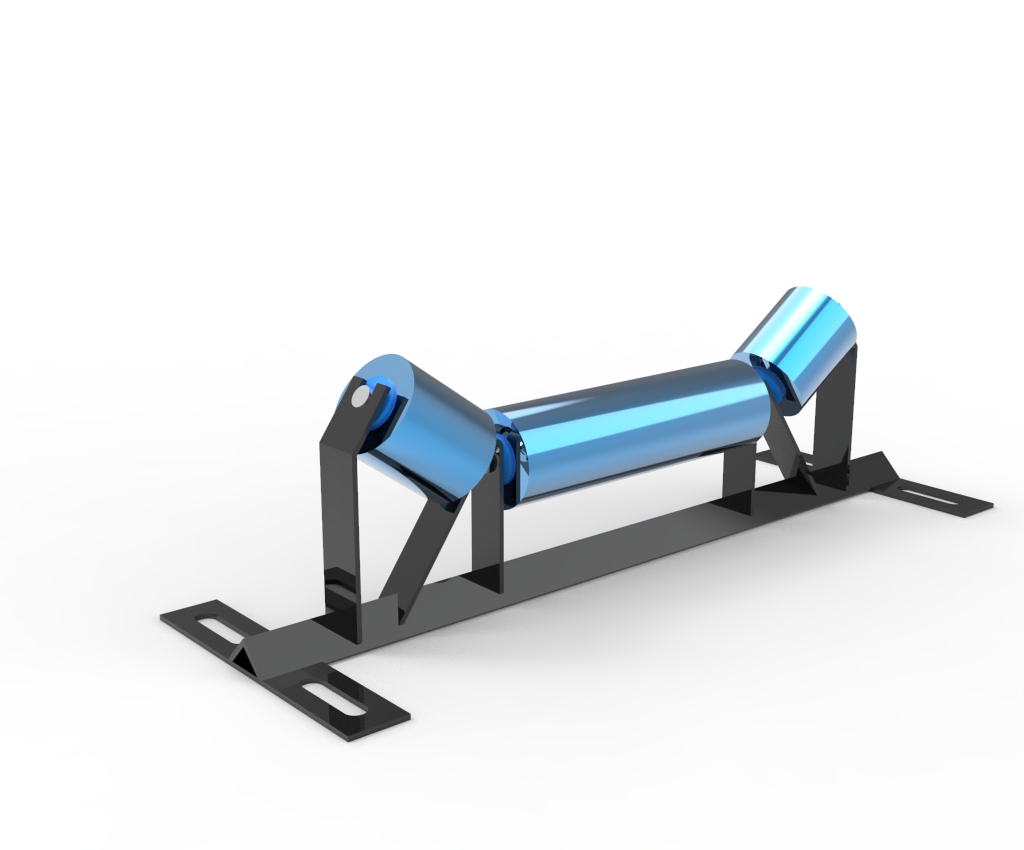

Feeder / Picking Table
Extended centre roll at 20° side angles. Disperses material flat for visual inspection and magnetic separation.
